THERMODRAIN INSTALLATION GUIDE

ThermoDrain is one of the easiest drain water heat recovery unit to install. Each unit comes with a comprehensive guide. The guide includes images and detailed instructions. Each unit comes with drain couplings as well as three different factory installed potable water connectors.

ThermoDrain Installation Made Easy

TDH INSTALLATION INSTRUCTIONS PDF FORMAT  download here.

TDX INSTALLATION INSTRUCTIONS PDF FORMAT download here

Did you know that horizontal installation is possible with our ThermoDrain units as they are manufactured with certified copper drain pipes? All efficiencies mentioned in our documentation are rated for vertical installations. A horizontal installation will result in a lower efficiency rating than a vertical installation.

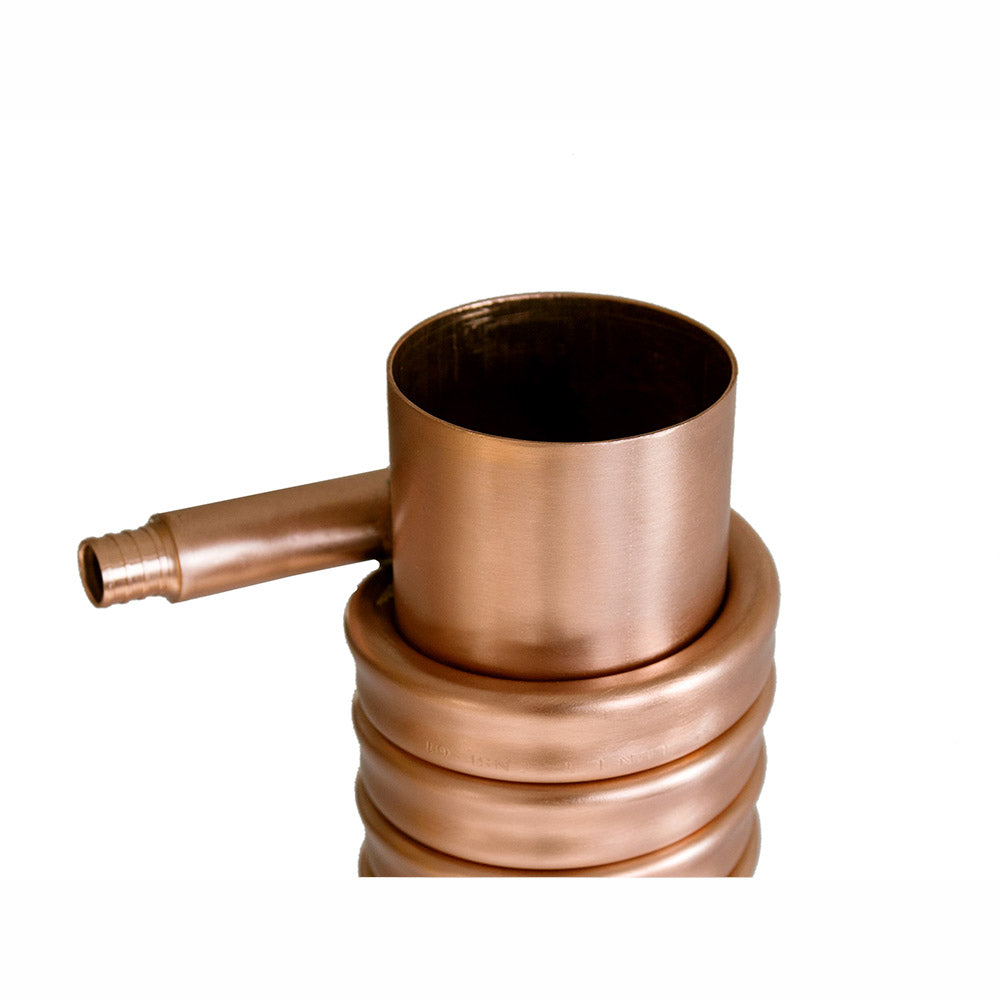

Factory-installed water fittings

ThermoDrain comes with three different potable water fittings to make installation easy.

  1. Crimp-style PEX fittings. (ASTM F1807) This patent pending factory-installed option makes the installation of your new unit easy and fast. No soldering is required. Simply line up the PEX lines and crimp them.
    Watch this video to learn more about crimp PEX.
  2. Expansion style PEX fittings. (ASTM F1960) This patent pending factory-installed option makes the installation of your new unit easy and fast. No soldering is required. Simply line up the PEX lines and crimp them.
    Watch this video to learn more about expansion PEX.
  3.  TDH only = Copper 3/4″ Male. Ready for any type or quick connecting adaptor such as compression fittings or simply soldering a PEX or other fitting to adapt to your current potable water system.

The difference between Crimp and Expansion PEX can be found on this page

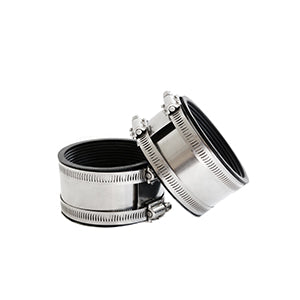

High quality drain couplings are included with every TDH series ThermoDrain

ThermoDrain comes with a high quality drain coupling that ensures a fast and easy installation.

TDX series ThermoDrain

The TDX series is installed with glue to the current drain system.

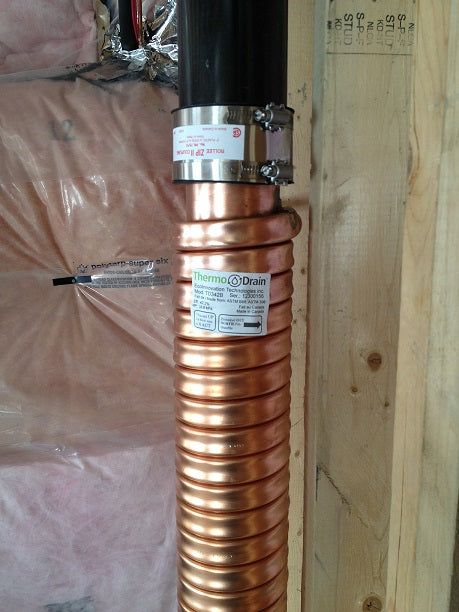

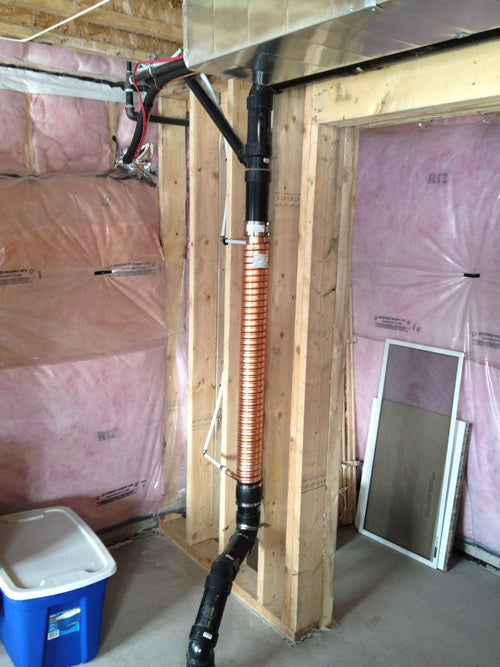

Connecting the ThermoDrain

A ThermoDrain installation takes on average, 20 to 45 minutes and $30 to $50 of additional parts

ThermoDrain comes with optional factory-installed PEX fittings, either the crimp or expansion style. Each TDH 3" unit ThermoDrain comes with quality mechanical drain couplings explicitly designed for the ThermoDrain. Each TDX unit is fitted with female ABS drain couplings ready to be glued into your current ABS drain pipe. Both the TDX and TDH series are light and compact, the ThermoDrain is suited for a one-person installation on any style drain stack where space is at a premium. ThermoDrain features ultra low-pressure drop and high efficiency.

Simple installation steps

Drain connection

1. Cut out a vertical section of the drainpipe below the shower. Any ABS drain pipe works with the model of ThermoDrain you are working with. For exact measurements, refer to the installation instructions below that match the model you purchased.
2. Fasten the drain connectors to the ThermoDrain and to the drain pipe. These will seal the top and bottom of the drain connection.

Cold water connection

1. Connect the bottom of the ThermoDrain to a cold water supply line (this is the inlet).
2. Connect the top of the ThermoDrain coil (this is the exit) in any of the following three configuration options;

(Refer to diagrams below)

Option 1. The cold water line of the shower
Option 2. The inlet of the hot water tank
Option 3. Alternatively, both 1 and 2 (the most efficient option)

ThermoDrain Specification Sheets

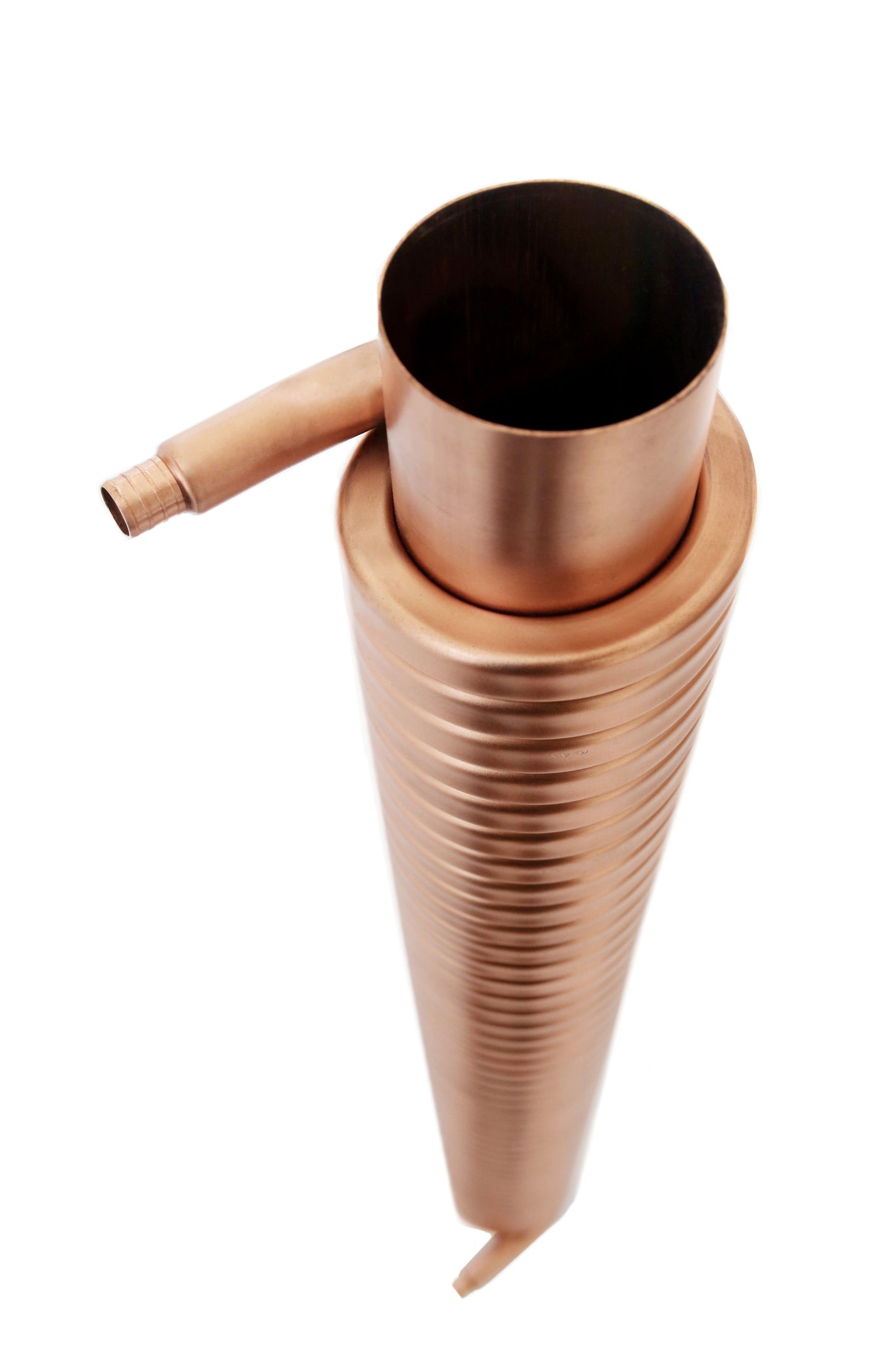

3″ TDX Series (New generation compact and easy installation)
TDH 3″ SERIES PDF COPY AVAILABLE HERE FOR DOWNLOAD

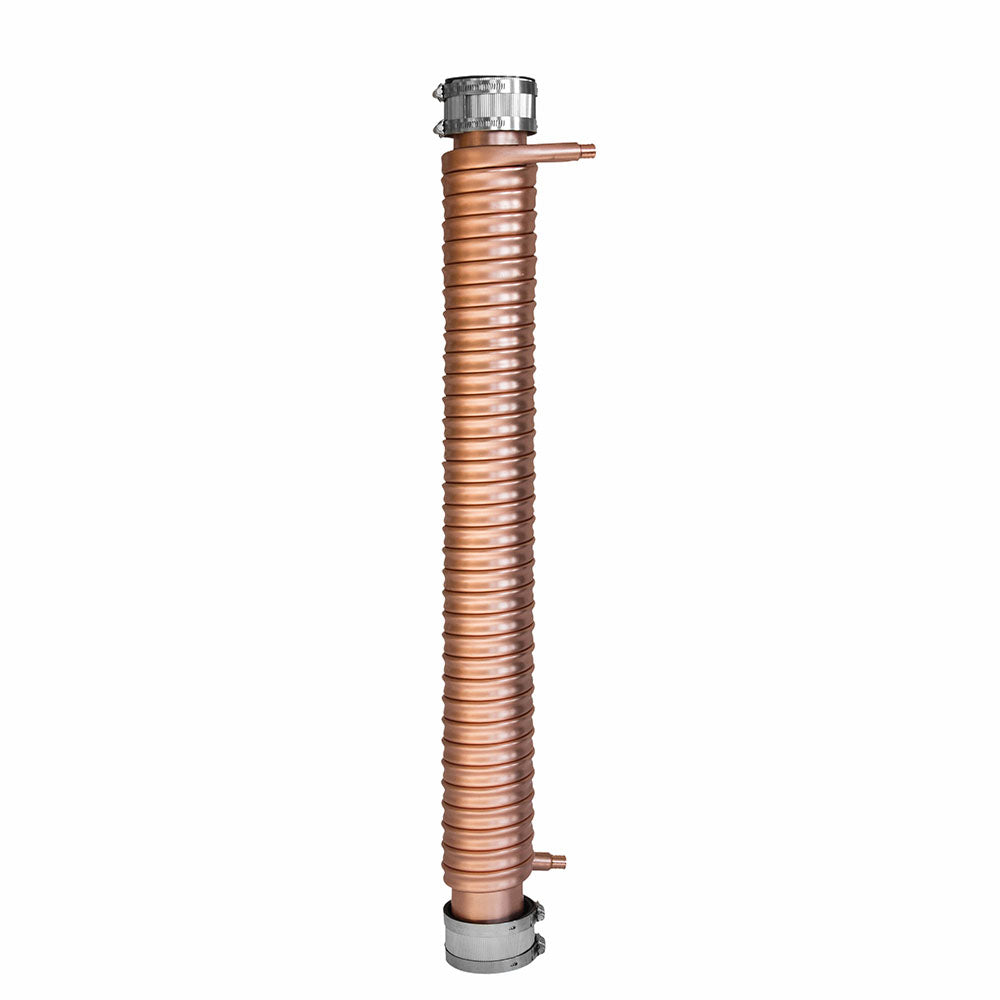

3″ TDH Series (Copper)
TDH 3″ SERIES PDF COPY AVAILABLE HERE FOR DOWNLOAD

4″ TD Series for high-flow applications
PDF – ThermoDrain 4″ drain diameter specifications sheets

Multi-residential – PDF- Engineering technical binder

Example product title

$19.99 CAD
$19.99 CAD
Sale Sold out
Shipping calculated at checkout.
View full details

ThermoDrain BASIC installation applications

MULTI-SHOWER AND MULTI-RESIDENTIAL THERMODRAIN INSTALLATION

PERFORMANCE VERIFIED AND SAFETY CERTIFIED

ThermoDrain Specification sheets

THERMODRAIN Q & A​

How easy is it to install?

A ThermoDrain can be installed by a single person in less than 45 minutes.

What is included with the ThermoDrain?

TDH series = Two easy to install drain couplings and instructions.

TDX series = Female ABS couplings factory installed on the unit ready to be glued into your stack. Easier and more secure than drain couplings

If you ordered a PEX option, these will be either crimp PEX type fittings or expansion type PEX fittings that will be factory installed onto the unit.

TDX = Added bonus, both fittings swivel 360 degrees on the unit and eliminate the need to redirect water flow.

What length of ThermoDrain do I select?

Verify the model you have and refer the instructions. TDX is NOT measured in the same way as the TDH

Does the ThermoDrain work on Instantaneous water heaters?

It is compatible with all hot water heating systems including Solar. ThermoDrain is compatible with all types of plumbing systems (Iron, ABS, Copper, Pex).

Does the ThermoDrain need to be insulated?

If the ThermoDrain is located in a humid area, condensation may form on the outside coil as is the case with all cold water lines in the home. and therefore insulating the ThermoDrain is recommended. Insulating the ThermoDrain will not significantly increase the efficiency of the unit.
