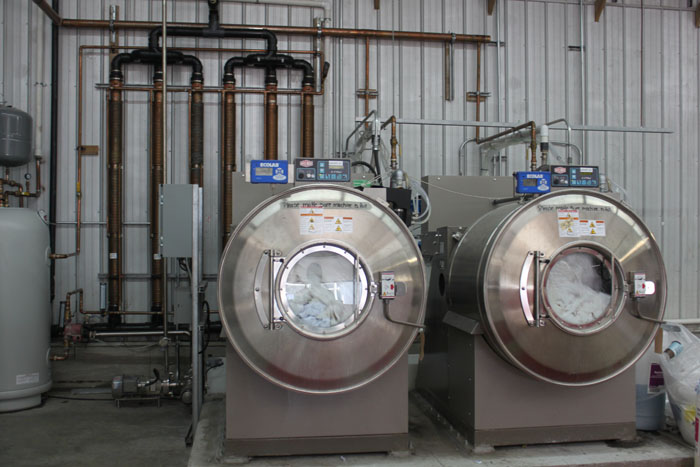

TD
Built for commercial, high-volume multi-residential and institutional drain water heat recovery applications.
ThermoDrain Product Families
ThermoDrain is a passive copper heat exchanger that recovers energy from warm drain water and transfers it back to your incoming cold supply, lowering the energy needed to heat water. Explore the three product families below to find the right fit for your project.
-
-

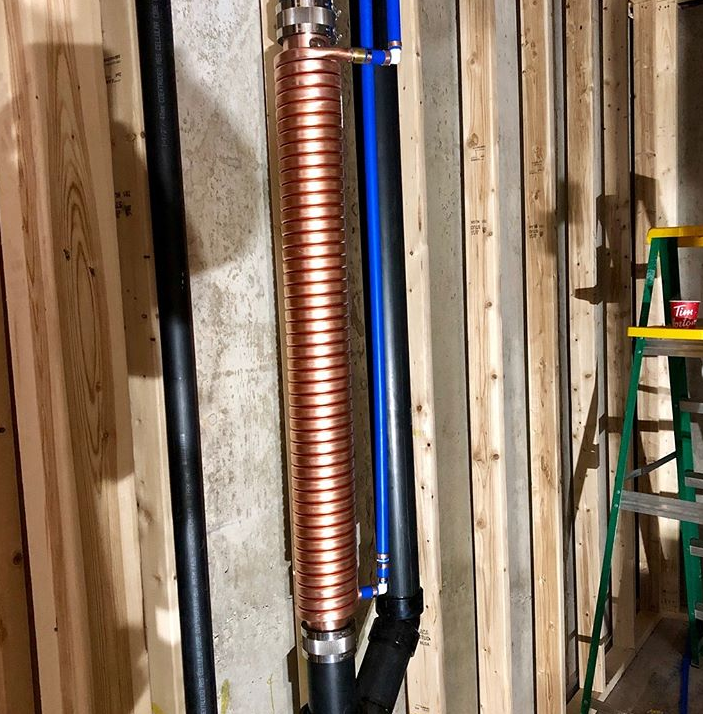

TDH
Advanced technology delivering high efficiency and high performance in a compact unit.
-

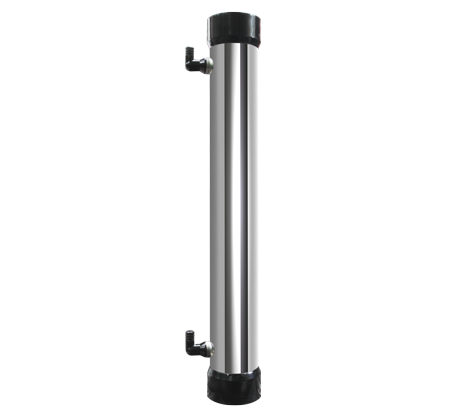

TDX
A compact, high-density heat exchanger built for low-clearance residential installs.
Compare the ThermoDrain family
| Specification | TD | TDH | TDX |
|---|---|---|---|
| Typical application | commercial, multi-residential, institutional | Retrofit and new construction - residential | Retrofit and new construction - residential |
| Drain pipe diameter | 4 inches | 3 inches | 3 inches |
| Material | copper | copper | Stainless steel outer shell, copper interior |
| Dual wall vented | yes | yes | yes |
| Maintenance required | none | none | none |
| Water Connection | Expansion pex F1960, Crimp pex, copper male | Expansion pex F1960, Crimp pex, copper male | 360 degree swivel crimp pex (expansion pex coming soon) |
| Drain connection | Mechanical drain couplings | Mechanical drain couplings | ABS glued or mechanical couplings |
| Pressure drop | Meets regional code requirements (where applicable) | Meets regional code requirements (where applicable) | Meets regional code requirements (where applicable) |
| Available length | 42 to 72 inches | 32 to 62 inches | 24 to 72 inches |
| Available Efficiency | 46 to 58.4% | 41 to 57.2% | 33.59 to 57.27% |
| Certification | CSA B55.1 & B55.2 (Intertek) | CSA B55.1 & B55.2 (Intertek) | CSA B55.1 & B55.2 (Intertek) |
| Limited warranty | 5 years | 5 years | 5 years |
