New Home Construction & Performance Compliance
Integrating ThermoDrain into new residential construction is the most cost-effective mechanical upgrade available to meet strict building codes, lower HERS Index scores, and satisfy Net-Zero infrastructure targets. Operating with zero moving parts, zero electrical power, and zero required maintenance, this passive energy recycling system delivers a lifetime of utility savings and enhanced hot water comfort to homebuyers while protecting builder profit margins.
Canadian Builder Hub: Tiered Code Compliance, HOT2000 Modeling & Sizing

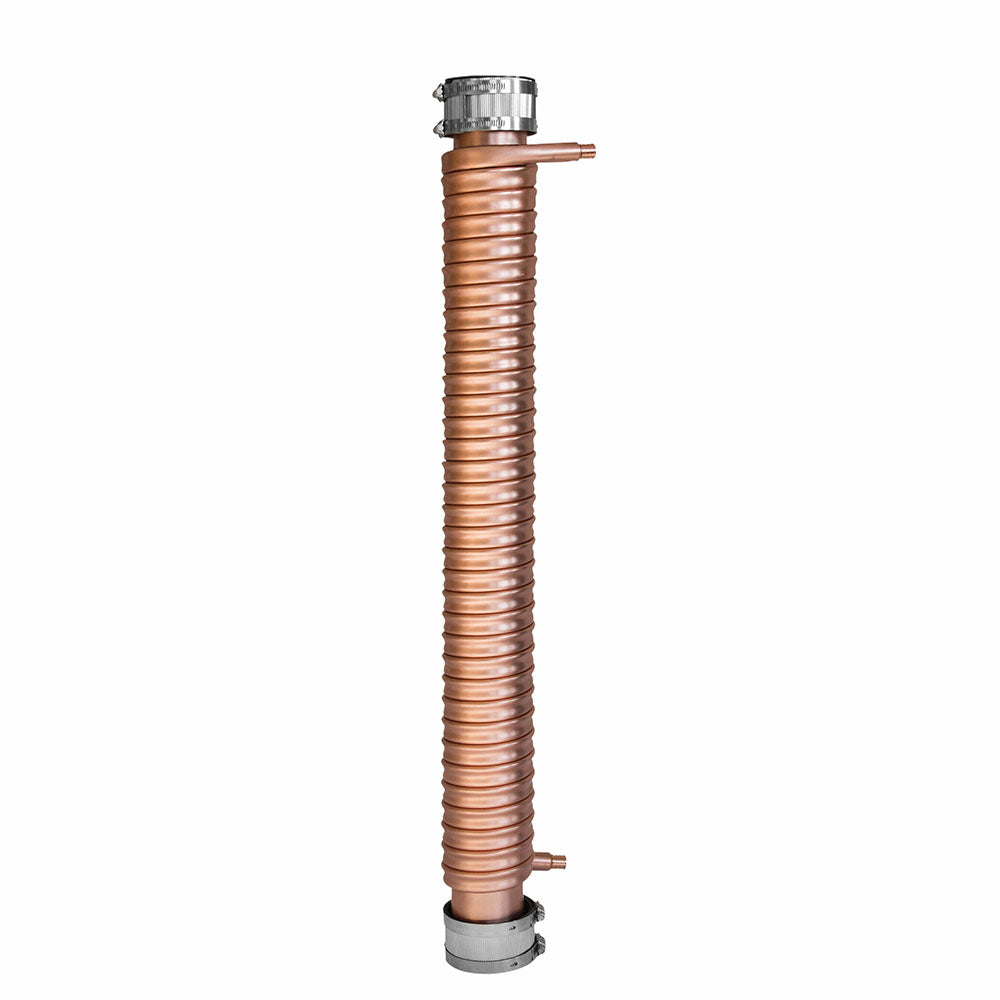

Drain Water Heat Recovery (DWHR) is a passive, falling-film counter-flow heat exchanger that extracts thermal energy from outgoing shower wastewater to preheat incoming municipal water mains. Operating with zero moving parts, zero electrical load, and third-party verified potable head loss < 17.2 kPa (2.5 psi) under CSA B55.1:20 (R2025), the ThermoDrain® TDX Series enables builders, mechanical engineers, and Certified Energy Advisors (CEAs) to resolve the domestic water heating MEUI bottleneck, satisfy provincial tiered energy codes (BC Step Code, OBC SB-12, NBC 9.36), and qualify for maximum CMHC MLI Select financing discounts.
British Columbia: BC Building Code Subsection 9.36.6 & Zero Carbon Step Code
Step 3 Baseline, Step 4 & Step 5 (Net Zero Ready) | ZCSC Operational Carbon (EL-1 to EL-4)Under the BC Energy Step Code (BCBC 2024 Revision 5, Part 9 Subsection 9.36.6 and Part 10), projects must concurrently satisfy Thermal Energy Demand Intensity (TEDI) and Mechanical Energy Use Intensity (MEUI). In airtight Step 4 and Step 5 homes, space heating is reduced to minimal baselines, causing domestic water heating to expand to 35% to 50%+ of total allowable mechanical energy consumption. Specifying an Equal Flow ThermoDrain TDX unit directly resolves this "MEUI Bottleneck" in HOT2000, delivering a verified 2.5 to 5.5 kWh/(m²·a) MEUI reduction without requiring triple-pane window redesigns or exterior wall framing modifications.
Engineering Comparison: Resolving a 4.0 kWh/(m²·a) MEUI Deficit in BC Part 9 Residential
| Compliance Strategy | Typical Added Cost / Door | Modeled MEUI Impact | Engineering, Framing & Enclosure Impact |
|---|---|---|---|
| Triple-Pane Window Package (U ≤ 0.85) | +$6,000 – $12,000 CAD | -1.5 to -2.5 kWh/(m²·a) | Reduces space heating TEDI only; zero impact on domestic hot water load. |
| Exterior Continuous Mineral Wool (R-12 ci) | +$8,500 – $14,000 CAD | -2.0 to -3.5 kWh/(m²·a) | Engineered strapping screws, window jamb extensions, rainscreen adjustments. |
| Rooftop Solar PV Array (1.5 to 2.5 kW) | +$5,500 – $9,000 CAD | Offset credit only | Roof structural engineering, electrical service capacity, inverter replacement cycles. |
| ThermoDrain® TDX Series (Equal Flow DWHR) | ~$440 – $720 CAD (Equip.) ~$850 – $1,250 installed |
-2.5 to -5.5 kWh/(m²·a) | Directly reduces DHW load. Zero envelope changes. Fits standard 89 mm (2×4) chase. |
Ontario: Ontario Building Code (OBC) Supplementary Standard SB-12
Prescriptive Compliance Packages (Section 2.1.1.4) & Performance Modeling Path (Section 2.1.2)In Ontario production subdivisions, high-volume tract builders utilize DWHR as a core trade-off credit under OBC Supplementary Standard SB-12. Under prescriptive compliance packages, specifying a DWHR unit certified to CSA B55.1 with a minimum 42.0% efficiency satisfies prescriptive requirements without requiring continuous exterior foam sheathing. Under the SB-12 Performance Path (simulated in HOT2000), ThermoDrain reduces modeled annual energy consumption by 4.0 to 7.5 GJ/year.
| Model Number | CSA B55.1 Rated Eff. | OBC SB-12 Compliance & Program Role | Plumbing Standard |
|---|---|---|---|
| TDX3350 (Builder Pro) | 42.10% (Equal Flow) | Production standard. Clears the prescriptive ≥ 42.0% minimum threshold for SB-12 packages. | CSA B137.5 / CSA B181.1 |
| TD442 (Group R-2 Stack) | 46.20% (Equal Flow) | Part 3 & Part 9 Multi-Unit Residential (MURB) 4" vertical wet-vented drainage stacks. | CSA B137.5 / CSA B181.1 |
| TDX3615 (Net-Zero Pro) | 55.04% (Equal Flow) | ENERGY STAR® for New Homes, CHBA Net Zero Ready, and Toronto Green Standard (TGS v4). | CSA B137.5 / CSA B181.1 |
Alberta: NBC(AE) 2023 Subsection 9.36.5 / 9.36.7 Performance Tiers
Tiered Code Compliance (Tiers 1 to 4) & CHBA Net Zero / Built Green® AlignmentIn Alberta, municipal winter groundwater temperatures routinely drop to 4.0°C to 7.0°C (39°F–45°F). Under the National Building Code – 2023 Alberta Edition (NBC(AE)), this wide temperature lift drives water heating to over 35% of total annual modeled Gigajoule (GJ) consumption in HOT2000. Specifying a ThermoDrain TDX3350 preheats incoming supply mains to ~20°C, delivering an immediate 4.5 to 6.0 GJ/year savings. This mechanical offset provides builders with a low-cost pathway to achieve Tier 2 and Tier 3 compliance without upsizing continuous exterior insulation.
Manitoba & Saskatchewan: High-HDD Prairie Performance Tiers
NBC 2020 Tiered Energy Code & Efficiency Manitoba New Homes RebatesIn Prairie climates experiencing over 5,500 Heating Degree Days (HDD ≤ 18°C), mechanical efficiency measures must be passive and freeze-proof. ThermoDrain units operate with zero electrical draw and maintain potable-side head loss under 17.2 kPa (2.5 psi) at 9.5 L/min, preserving pressure on well-water and municipal systems while qualifying for direct prescriptive rebates through Efficiency Manitoba and SaskEnergy high-efficiency housing programs.
Atlantic Canada: Nova Scotia & New Brunswick NBC 2020 Adoption
Efficiency Nova Scotia & NB Power All-Electric Energy Performance TiersWith Nova Scotia and New Brunswick implementing the NBC 2020 energy performance tiers, builders face strict Gigajoule consumption targets. Because Atlantic residential new construction is predominantly all-electric, pairing a ThermoDrain with an electric resistance tank or Heat Pump Water Heater (HPWH) drastically reduces winter electrical peak demand, securing direct utility incentives through Efficiency Nova Scotia New Home Construction and NB Power Total Home.
National HOT2000 Modeling Reference Input Matrix
Certified Energy Advisors (CEAs) and mechanical consultants across Canada can enter these verified laboratory test parameters directly into NRCan HOT2000 (v11.10b+ / v11.12+) under the Domestic Hot Water → Drain Water Heat Recovery (DWHR) component window. To capture full modeled deductions, select Equal Flow (preheated water routes to both the water heater and the shower cold valves).
| HOT2000 Input Parameter |
TDX Compact TDX3240B (Starts at ~$250 CAD) |
TDX Builder Pro TDX3350 (Code Standard / SB-12) |
TDX Net-Zero Pro TDX3615 (High-Yield Net Zero) |
|---|---|---|---|
| Approx. Equipment Cost (MSRP) | ~$250 CAD | ~$425 CAD | ~$695 CAD |
| Primary Code / Modeling Target | Restricted crawlspaces < 850 mm, garden suites, entry Tier 2 | OBC SB-12 (≥ 42%), BC Step 3/4 MEUI, NBC 9.36 Tier 2/3 | BC Step 5 Net Zero Ready, CHBA Net Zero, Passive House |
| Nominal Length × Core Stack | 610 mm × 76 mm (24.0" × 3") | 889 mm × 76 mm (35.0" × 3") | 1562 mm × 76 mm (61.5" × 3") |
| Required Clear Chase Height | 810 mm (32.0" clear) | 1,120 mm (44.0" clear) | 1,830 mm (72.0" clear) |
| Certified CSA B55.1 Efficiency (η)* | 33.59% (Equal Flow) | 42.10% (Exceeds SB-12 42%) | 55.04% (Equal & Unequal Flow) |
| Potable Head Loss @ 9.5 L/min | < 12.4 kPa (1.8 psi) | < 17.2 kPa (2.5 psi) | < 22.1 kPa (3.2 psi) |
| Indicative HOT2000 MEUI Impact** | -2.5 to -3.8 kWh/(m²·a) | -3.5 to -5.5 kWh/(m²·a) | -5.0 to -7.5+ kWh/(m²·a) |
| Indicative Annual Energy Offset** | -3.0 to -4.5 GJ/year | -4.5 to -6.5 GJ/year | -6.5 to -9.0+ GJ/year |
| Plumbing Connections Standard | CSA B137.5 PEX (ASTM F1807 / F1960) & CSA B181.1 ABS Solvent Weld | CSA B137.5 PEX (ASTM F1807 / F1960) & CSA B181.1 ABS Solvent Weld | CSA B137.5 PEX (ASTM F1807 / F1960) & CSA B181.1 ABS Solvent Weld |
| Certification Standards | CSA B55.1:20 (Performance) & CSA B55.2:20 (Safety / Double-Wall Air Gap), cUPC Listed | CSA B55.1:20 (Performance) & CSA B55.2:20 (Safety / Double-Wall Air Gap), cUPC Listed | CSA B55.1:20 (Performance) & CSA B55.2:20 (Safety / Double-Wall Air Gap), cUPC Listed |
*Rated thermal efficiency measured in accordance with CSA B55.1:20 at 9.5 L/min (2.5 GPM) equal potable and drain flow rates.
**Modeled energy and MEUI impacts are indicative ranges evaluated for standard 220–260 m² single-family reference homes under typical Canadian domestic water draw profiles. Actual project reductions depend on baseline water heating fuel and UEF, climate zone, number of bedrooms, and software version.
Need CSA B55.1 Submittal Packets, HOT2000 Files, or Volume Builder Pricing?
EcoInnovation supports Certified Energy Advisors (CEAs), mechanical engineers, and residential builders across Canada with third-party test data, CAD isometric schematics, and regional wholesale trade counter coordination.
